Zowell Electric Reach Truck 7.5m Lifting Height
|Terms of Trade:||FOB,CFR,CIF,EXW|
|Min. Order:||1 Piece/Pieces|
|Delivery Time:||45 Days|
|Packaging:||wooden package or metal package|
|Place of Origin:||China|
Model No.: FRA

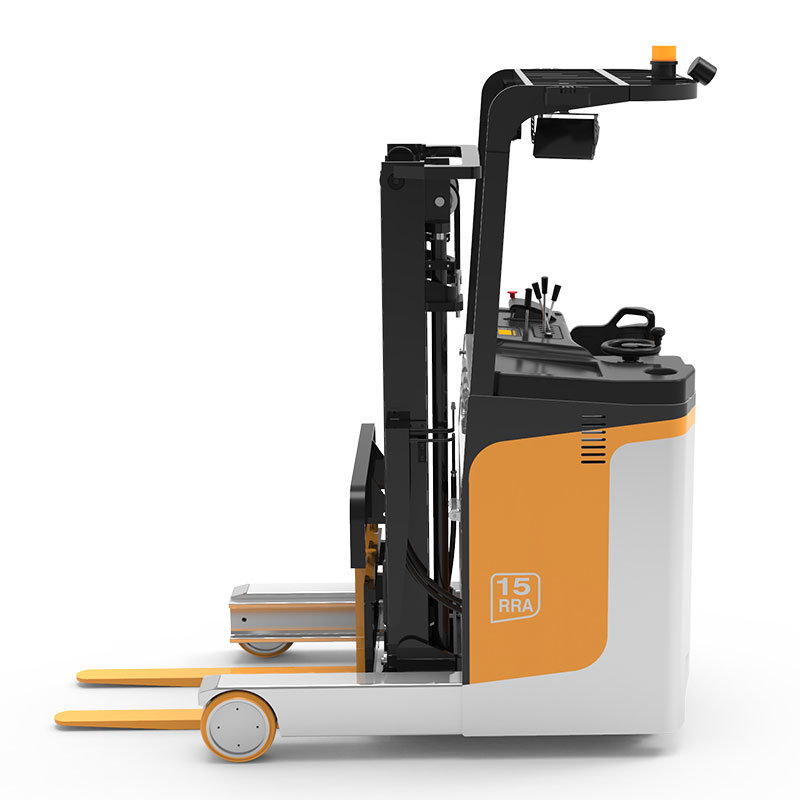

Our Zowell 1.6 ton electric reach truck is typically designed for stacking of high intensity, and it can be used to transport pallets as well as to stack in various warehouses, manufacturing industries, retail stores, etc. And we have two types of this kind of reach truck for customers worldwide: Standing-on and sit-down. Its loading capacity ranges from 1000kg to 1600kg.
1. Advanced AC control system eliminating motor brushes and directional contactors, which significantly reduces maintenance requirements. DC technology is optional.
2. Multi-function display: battery state, hour Meter, fault code indicator, etc.
3. Stepless speed control.
4. Electric Hydraulic Steering for easy steering.
5. Reach function: Fork can extend 600mm
6. Fork can tilt forward / backward for safer load handling.
7. German Mannstaedt forklift profile for mast building.
8.Side battery roll-out system is very convenient for replacement. The battery front cover makes it easy to fill the battery.
9. 45-degree standing and operating position ensures comfortable operation.
10. Low stand-on platform for easily step on and off .
11.CAN-bus technology reduces wiring complexity and increase reliability.
12. Built-in pressure relief valve protects the trucks from overloads, increases the reliability.
13. Side shift is optional
|Technical data - FRA15/18|
|1.4||Driving type||Standing on||Standing on|
|1.7||Front overhang(Mast reach in/Mast reach out )||mm||x||385/175||565/175|
|2.1||Self weight(With battery)||kg||2400||2400|
|2.2||Alex unload(Front/Rear)-fork back||kg||1600/800||1600/800|
|2.3||Alex loaded(Front/Rear)-fork out||kg||3390/510||3390/510|
|2.4||Alex loaded(Front/Rear)-fork back||kg||2500/1400||2500/1400|
|3.2||Drive wheel size||mm||Φ330x145||Φ330x145|
|3.3||Balance wheel size||mm||Φ178x73||Φ178x73|
|3.4||Load wheel size||mm||Φ254x120||Φ254x120|
|4.1||Tilting degree (Front/Rear)||deg||α/β||3/5||3/5|
|4.2||Overall height(mast lowerest height)||mm||h1||1995||1995|
|4.3||Free lift height||mm||h2||105||105|
|4.5||Mast extended height||mm||h4||3900||3900|
|4.8||Overall length(with fork)||mm||L1||2230||2410|
|4.9||Distance to forkface||mm||L2||1160||1160|
|4.12||Fork carriage standard||ISO-2328 2B||ISO-2328 2B|
|4.13||Cargo fork width||mm||b3||720||720|
|4.15||Inside width of front leg||mm||b4||739||739|
|4.17||Minimum height above ground||mm||m1||75||75|
|4.18||Minimum frame height above ground||mm||m2||75||75|
|4.21||Min turning radidus||mm||Wa||1582.5||1758|
|5.5||Grade ability (Loaded/unloaded) KB3'1.5km/h||%||10/14.3||10/14.3|
|5.6||Parking type||machanical disc||machanical disc|
|6.1||Driving motor KB60'||kw||6.5||6.5|
|6.2||Lifting motor 15%ED||kw||12.5||12.5|
|7.1||Controller type||MOS-FET inverter||MOS-FET inverter|
